Safe and clean ventilation of your fuel or water tank

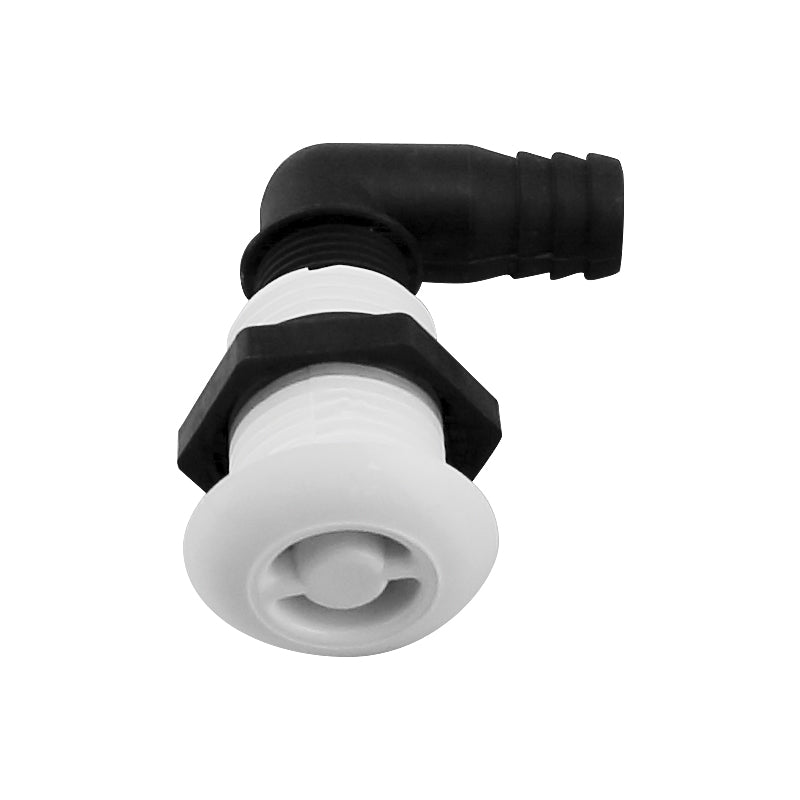

This white 90° vent for boat tanks is ideal for removing air when filling or using fuel or water tanks on board. The compact design with right-angled bend and a Ø16 mm hose connector ensures a neat, space-saving installation.
Features
-
Model: 90° elbow vent
-
Hose connection: Ø16 mm hose tail
-
Material: Plastic, corrosion resistant
-
Color: White – matches well with light decks and superstructures
-
Application: For fuel and water tanks

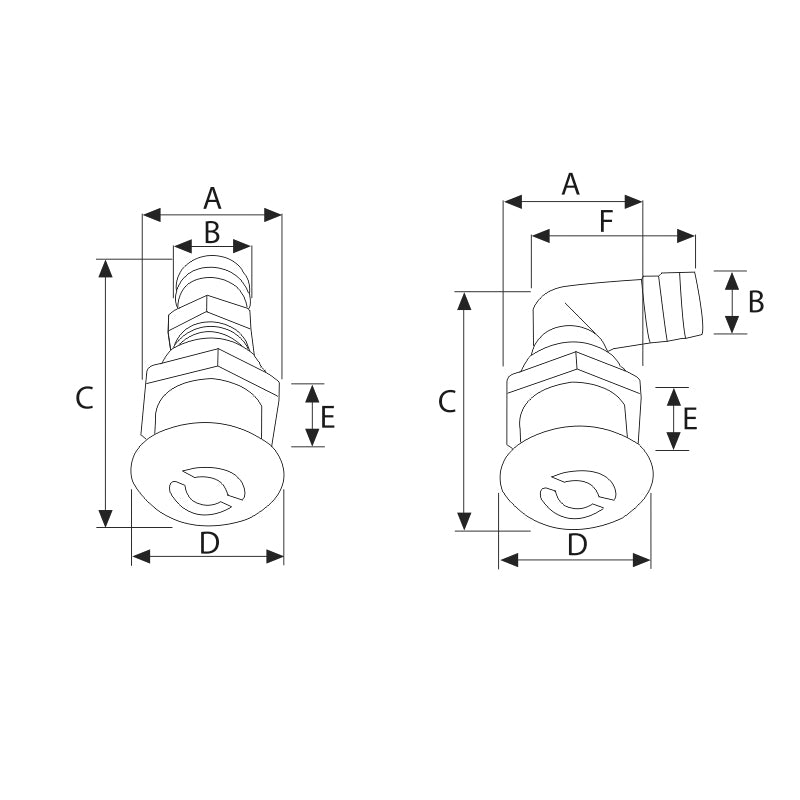

Dimensions
-
ØA (flange diameter): 29 mm
-
ØB (hose): 16 mm
-
C (total length): 83 mm
-
D (installation depth): 41 mm
-
E (height above deck): 40 mm
-
F (distance bend to connection): 50 mm
Advantages
-
Compact design with angled outlet – ideal where space is limited
-
Ensures safe venting of tanks during filling and use
-
Easy to mount with standard Ø16 mm hose
-
Weatherproof and UV-resistant plastic
Assembly instructions
Mount this vent in a suitable place above the tank. Connect a Ø16 mm hose to the tank. Make sure the outlet opening can ventilate freely and does not point inwards.
